Bands
WEB Prewelded Bands - Assortments
WEB anatomical bands prewelded to MIM tubes for Andrews, Roth, Boston, Alexander, Ricketts and STEP System 2.0 prescriptions.
E8960E8970E8961E8971E8920E8930G8070G8325
Prewelded WEB bands for Andrews, Roth, Boston, Alexander, Ricketts and STEP System 2.0 prescriptions are available in assortments of 25 or 78 bands. All trays can be autoclaved to avoid cross infection.

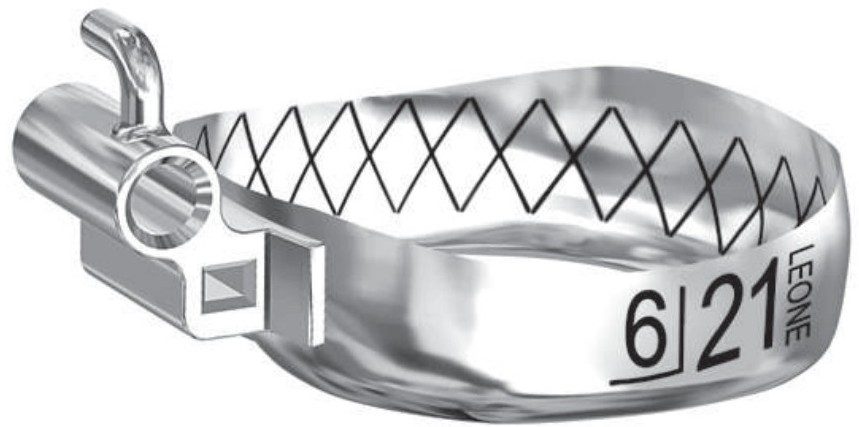

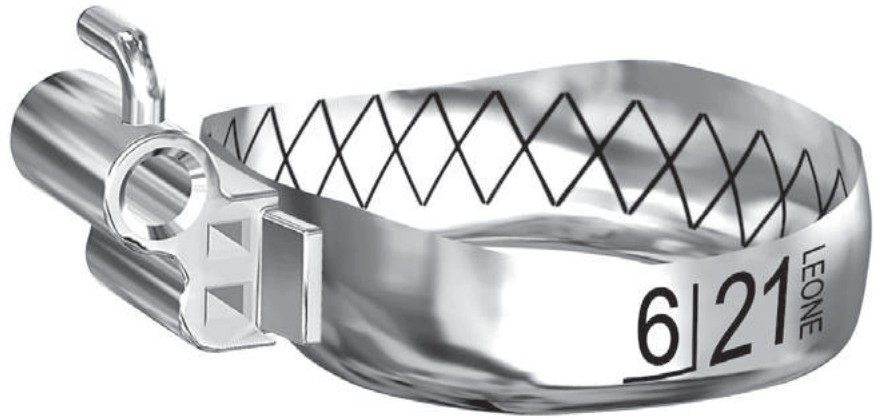

The WEB band brings the laser-etched interior to a prewelded product: the etched inner surface increases bond strength, and the tube is welded so the slot is perfectly centred. Those two properties together are what a Herbst or STEP System case actually depends on.
Standard prewelded bands for the most used techniques ship from stock; the full custom service covers everything else.
Ordering: always specify the size, e.g. E8970-19 or E8971-18.
Technical specifications
| Construction | WEB anatomical bands prewelded to MIM tubes |
|---|---|
| Prescriptions covered | Andrews · Roth · Boston · Alexander · Ricketts · STEP System 2.0 |
| Upper Andrews/Roth/Boston/Alexander | Tube .022"x.028", torque -25°, rotation +8°, round tube .051" — G8325-06 / G8325-07 |
| Lower Andrews/Roth/Boston/Alexander | Tube .022"x.028", torque -10°, rotation +8°, round tube .051" |
| Ricketts upper | Tubes .018"x.025", round tube .045" — G8084-12 / G8084-13 |
| Ricketts lower | Tubes .018"x.025", round tube .045" |
| STEP System 2.0 upper | Convertible tube .022"x.028", torque -14°, rotation +10°, round tube .045" |
| References (upper) | E8520-00 / E8530-00 · E8920-00 / E8930-00 — pack of 5 |
| References (lower) | E8560-00 / E8570-00 · E8960-00 / E8970-00 · E8961-00 / E8971-00 — pack of 5 |

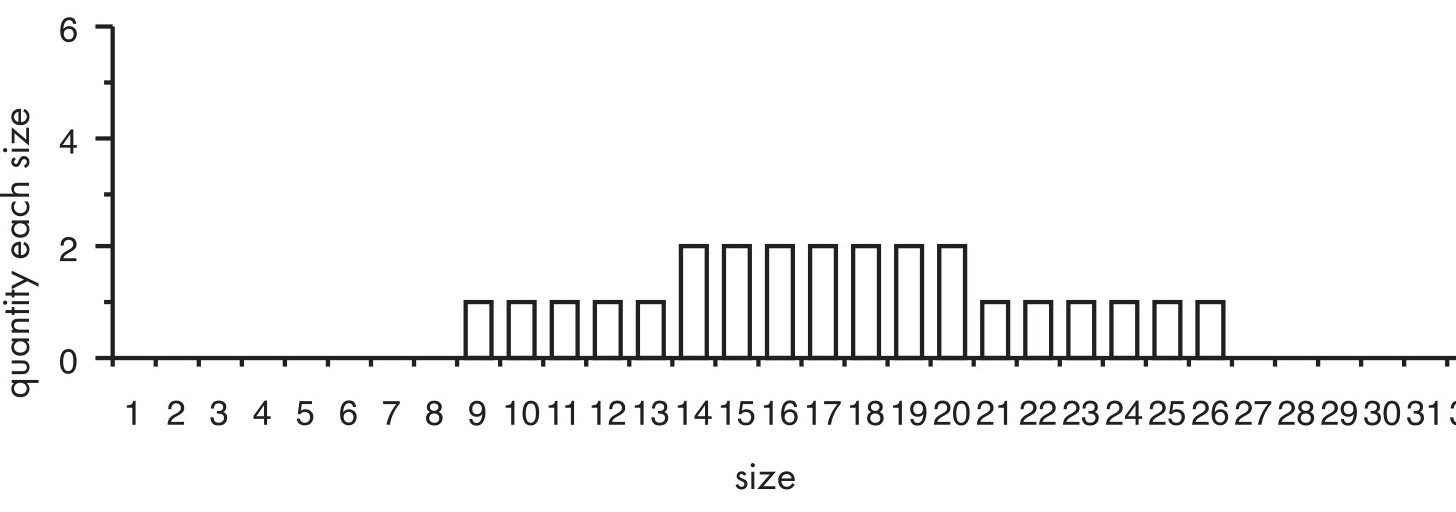

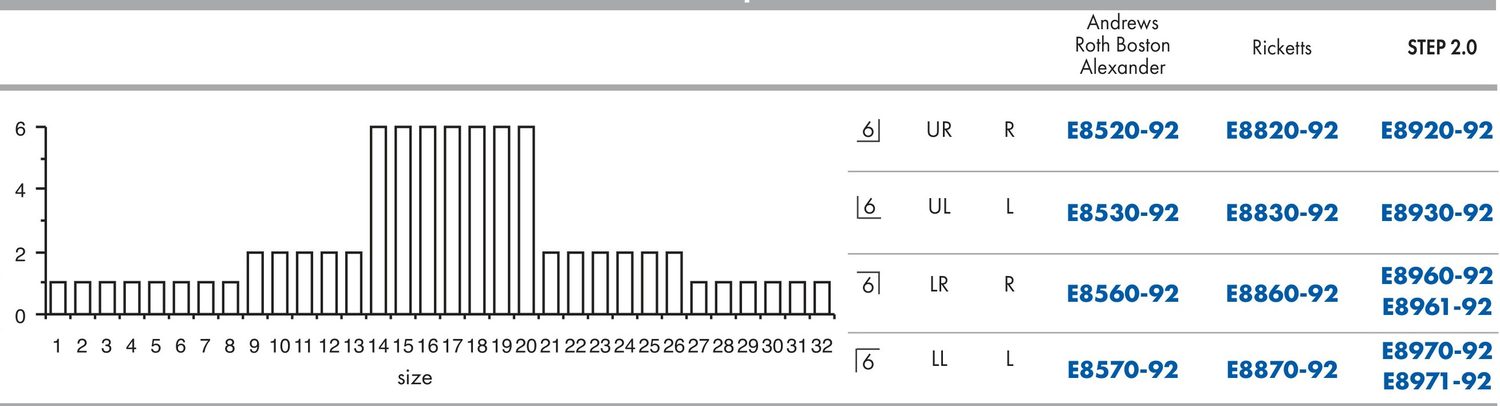

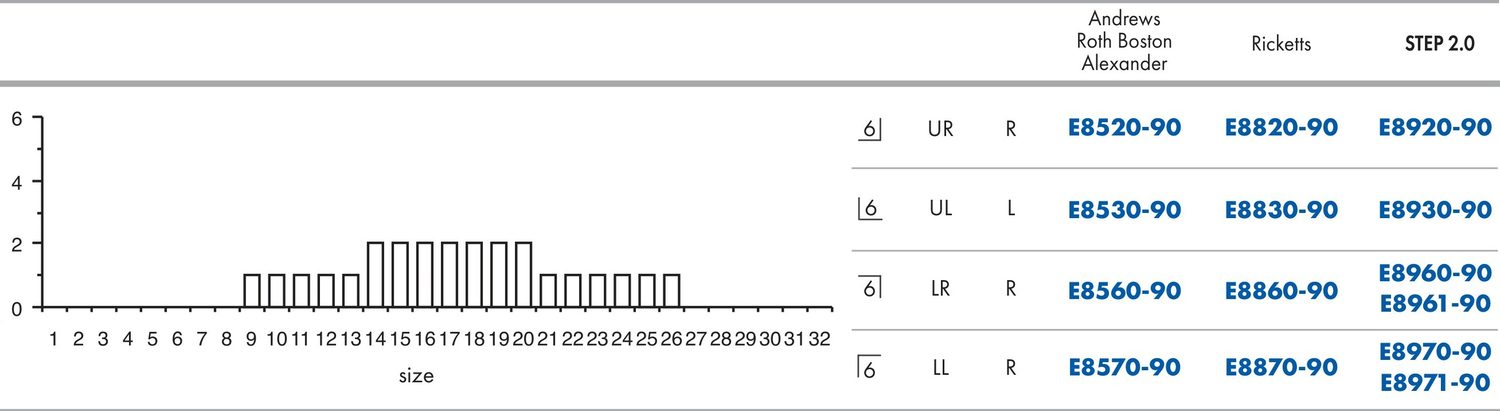

| Assortments | Assorted kit of 25 or 78 prewelded bands |
| Sterilisation | All trays can be autoclaved to avoid cross infection |
| Ordering | Always specify the size, e.g. E8970-19 or E8971-18 |
